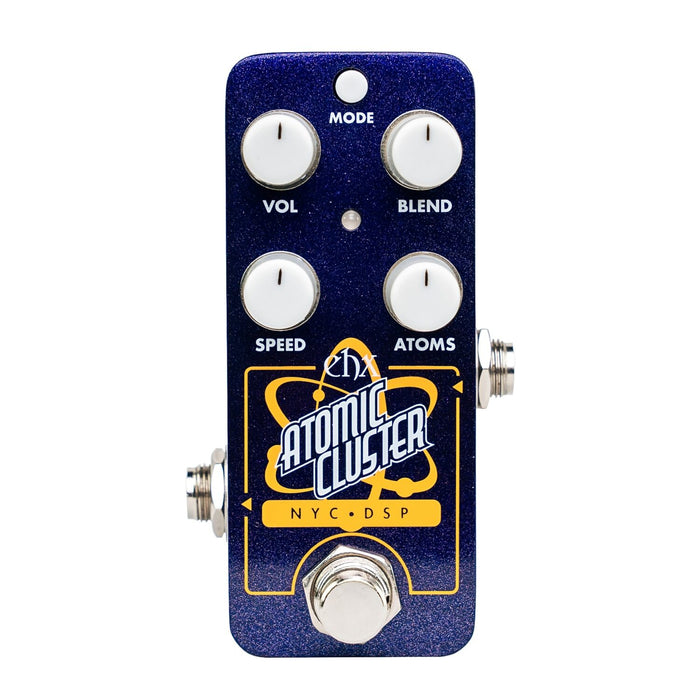

EHX Pico Atomic Cluster Spectral

SKU PICO CLUSTER
Original price $129.00 - Original price $129.00
Original price
$129.00
$129.00 - $129.00
Current price $129.00
Shipping to the U.S.? Contact us for a custom quote.

Deconstruct your tone to an atomic level with the Atomic Cluster Spectral Decomposer. Unlike any effect Electro-Harmonix has made before, this compact glitch and synth pedal breaks down your signal and interpolates it into a variety of musical and whimsical sounds. Using a unique algorithm to reduce the frequency resolution of your instrument, it creates a wide range of unique effects from rhythmic lo-fi glitch and auto-arpeggio tones to ambient synth pads and more!

The two main controls on the Atomic Cluster are the ATOMS and SPEED knobs. ATOMS controls the number of simultaneous resonant oscillations sounds at any moment, from a full spectrum of what is being processed down to a single note. With more oscillations, the tone is closer to your input signal. As the control is turned down, oscillations are reduced, creating a more pixelated, glitchier sound. The SPEED knob adjusts how quickly the pedal refreshes the oscillations, allowing you to control the timing and rhythm of the effect. Slower settings can mimic the sound of a rhythmic step filter while faster settings create a more chaotic random feeling effect. SPEED can also be set by tap tempo. Additional VOL and BLEND controls adjust overall output level and wet/dry mix respectively.

The MODE button toggles between SHARP and SMOOTH modes which choose the oscillation transition envelope shape. SHARP creates an instant transition for a more immediate, rhythmic effect. SMOOTH transitions between oscillations gradually, smoothly faded into one another for a more lush, ambient effect.

  • Unique algorithm to reduce the frequency resolution of your instrument, generating resonant oscillations directly related to your input signal
  • ATOMS sets how many oscillations are produced at a given moment
  • SPEED Sets how quickly the algorithm refreshes the oscillations it produces. This can also be controlled via tap-tempo
  • MODE Button toggles between SHARP and SMOOTH Oscillation Transition modes
  • VOL Adjusts the output volume
  • Power Supply included

SPECIFICATIONS

Circuit
Digital
Bypass
Buffered Bypass
Audio
Mono
Power Supply
9.6VDC-200mA power adapter included
Dimensions (in)
3.65 x 2.0 x 2.0
Current Draw
100mA
Year Released
2025
UPC
683274012704
Owner's Manual

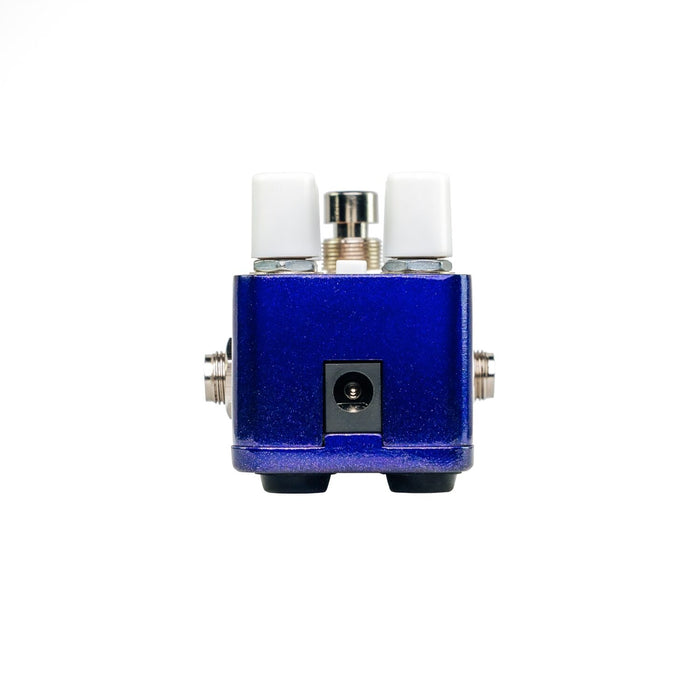

POWER JACK
Current draw: 100mA at 9.0VDC.

MODE Button
This button is used to control the transition style between the different oscillations: Red – Sharp Mode The transition between oscillations is instant, for a more rhythmic effect. Green – Smooth Mode The transition between oscillations is smoothly faded, for a more lush, ambient effect. NOTE: at very high SPEED settings, the difference between these two modes is subtle.

VOL Knob
Adjusts the output volume.

BLEND Knob
Adjusts the output mix from 100% dry to 100% wet.

SPEED Knob
Sets how quickly the algorithm refreshes the oscillations it produces. This can also be controlled via tap-tempo.

ATOMS Knob
Sets how many oscillations are produced at a given moment. TIP 1: Setting SPEED and ATOMS to maximum will give you a sound lose to your normal instrument sound. From there, play with lowering ATOMS and SPEED to get a feel for how these controls impact the effect. TIP 2: At lower numbers of ATOMS, you will likely get a more interesting and varied effect with a brighter input signal (a signal with more high frequency content). If using a guitar, consider the bridge pickup and/or using distortion before the Atomic Cluster.

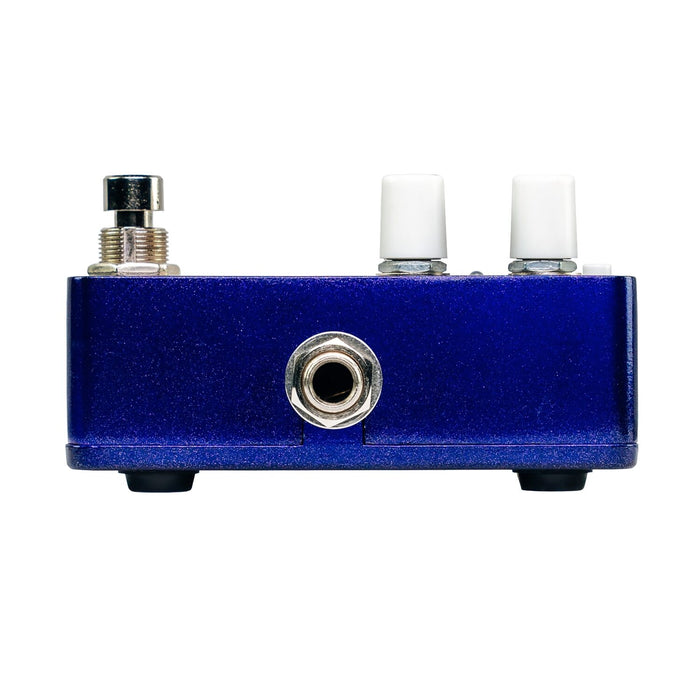

INPUT JACK
Audio input to the Pico Atomic Cluster.

OUTPUT JACK
Audio output from the Pico Atomic Cluster.

FOOTSWITCH & STATUS LED
Footswitch engages or bypasses the effect. The LED color indicates the selected mode. In bypass, the LED is off.
