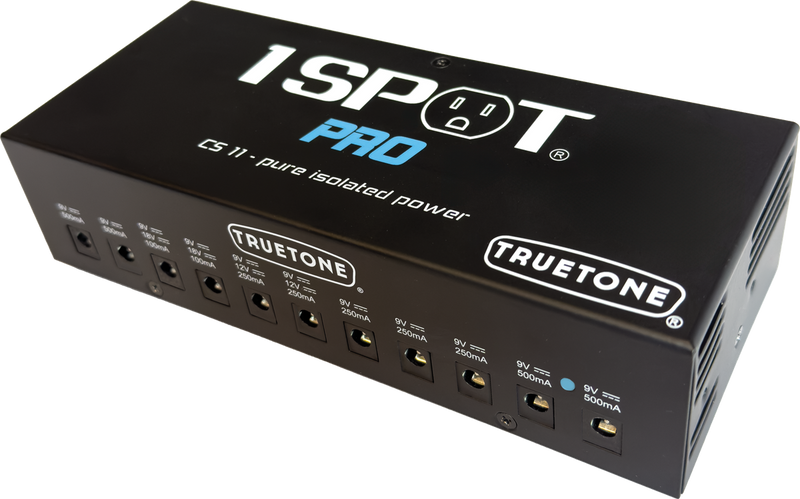

The most powerful 1 SPOT Pro yet. Eleven isolated outputs, worldwide voltage, pure isolation technology, and one bonus output on the back for Truetone expansion boxes. Quiet, dependable, and road-ready.
The CS11 is the same size as the CS12, but features all-new outputs and options. It offers more power, more available 9Vdc outputs, and a bonus output on the back for connecting Truetone expansion boxes like the XP5 and XP8. It goes to 11… and so much more.
- 11 isolated, filtered outputs, more 9Vdc outputs than ever

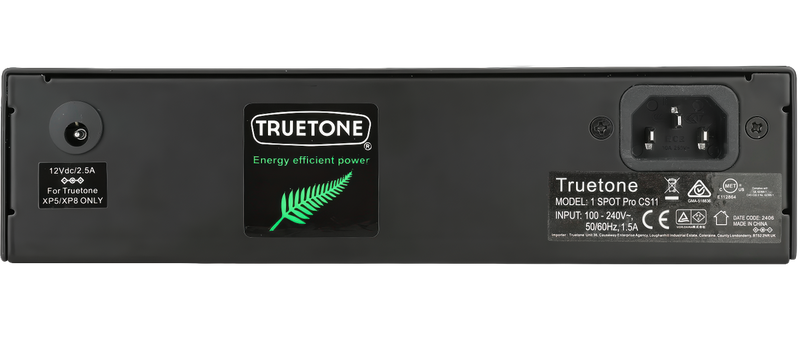

- Extra 12Vdc output on the back for XP5/XP8 expansion boxes

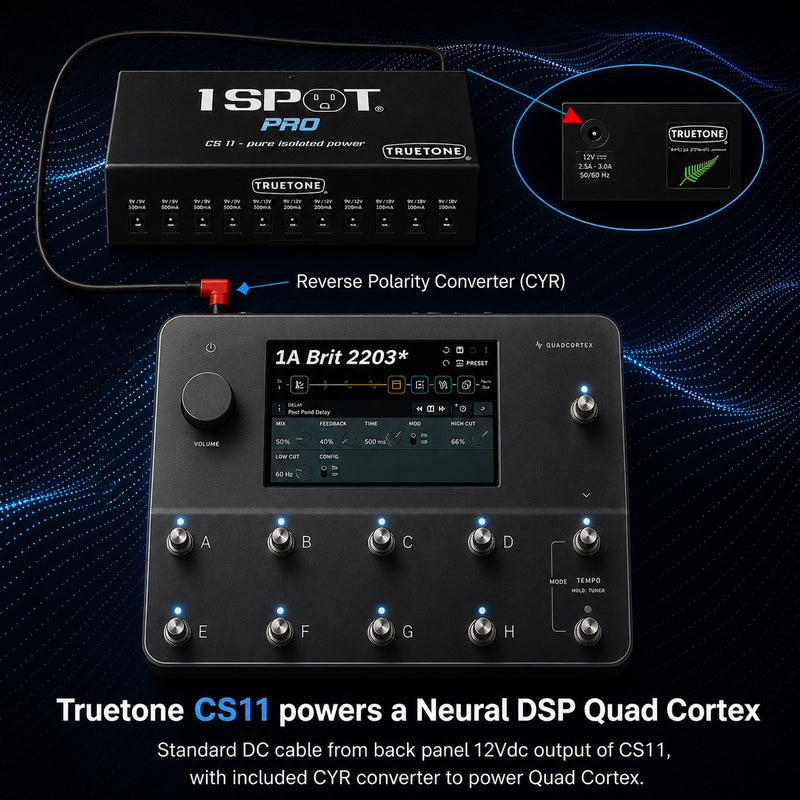

- Powers Neural DSP Quad Cortex via 12Vdc output with included CYR converter
- Cables and converter plugs included, color-coded for easy management
- Mounting brackets for Pedaltrain® pedalboards included
- Worldwide input voltage: 100–240Vac, no step-up transformer needed
Built Different.
By Design.
"A lot of people over the years had told us that we should make a power brick. I didn't want to make just another knock-off of someone else's power brick. If we were going to make one, we were going to do it our way and have features that nobody else could offer."
"It took 3 years and lots of experimentation, but we were finally able to design a 1 SPOT Pro using our own proprietary technology to give musicians all the features they need for today's pedalboards."
— Bob Weil, Founder & President, Truetone
Technical Specifications
CS11
Specs

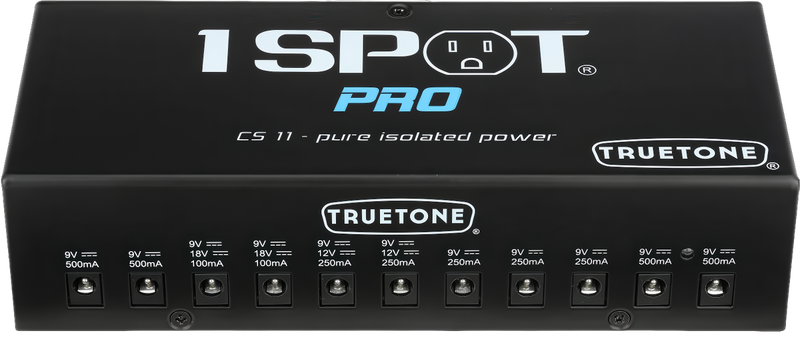

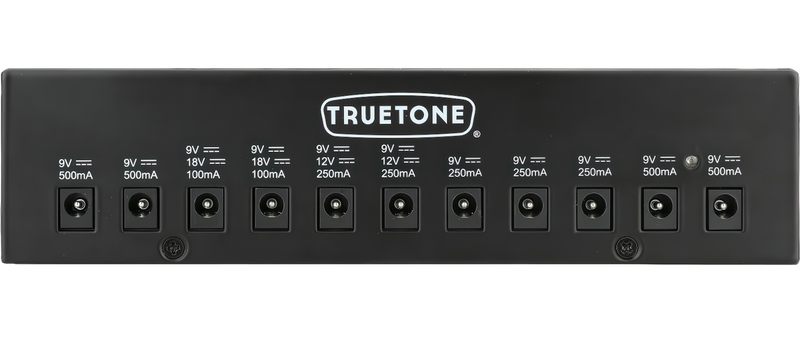

The CS11 delivers pure, isolated power to 11 front outputs plus a 12Vdc expansion output on the rear, all from a housing the same size as the CS12.
Each output is independently isolated and filtered, with switching power supply technology that handles real-world current demands without breaking a sweat.
| Dimensions |
205 × 86 × 50mm (8.07 × 3.38 × 1.97") |
| Weight |
971 grams (2.14 lbs.), power supply only |
| Input Voltage |
100–240Vac (worldwide) |
| Total Outputs |
11 front + 1 rear expansion (12Vdc) |
| Output Voltages |
Outputs 1–2, 10–11
9Vdc · 500mA each
Outputs 3–4
9Vdc or 18Vdc · 100mA
Outputs 5–6
9Vdc or 12Vdc · 250mA
Outputs 7–9
9Vdc · 250mA each
|
| Included Cables |
Color-coded DC cables in multiple lengths (12"–26"), MC2 combiner, plus CL6, CYR, C35, CBAT, C2.5 converter plugs |
| Mounting |
Pedaltrain® brackets included |
| Warranty |
5-Year Limited |
Pure Isolation
Each output is galvanically isolated from all others, plus an additional layer of pure analog regulation (what Truetone calls Pure Isolation). Decades of refinement, zero compromise on noise.
Energy Efficient
Since pioneering switching power supply technology for musicians in 2000, Truetone has saved thousands of watt-hours per musician per year. The CS11 sets a new benchmark for efficiency.
Multiple Voltages
9Vdc, 12Vdc, and 18Vdc outputs to power every pedal on your board. Pair with the Truetone Voltage Doubler or 18V-to-9V converter for even more flexibility. *on certain models.
Rugged Steel Housing
All-steel construction with cleverly designed vents, resistant to the accidental beer spill. Built for touring musicians who need gear that keeps up night after night.
Worldwide Voltage
Like the original 1 SPOT, the CS11 uses switching power supply technology to accept 100–240Vac input. Take it to any gig, anywhere in the world, without an adapter.
1 SPOT Technology
Proprietary switching power supply technology, not old transformer-based tech. Triple-filtered, completely noise-free, and capable of handling far more current than the output labels suggest.
